Jacketed Glass Reactor


JGR Series

  • Frequency speed regulation,

  • Good sealing,

  • Corrosion-resistant

Overview

Glass Reactor is a specialized experimental equipment used for chemical reactions and mixing operations. Through the temperature control provided by heating and cooling the thermal medium inside the jacket, the reactor's internal material reaction temperature can be
precisely controlled. In addition, the reactor has various functions such as feeding, temperature measurement, and distillate recovery. We offer reactors in different specifications, ranging in volume from 500 ml to 200L, and they can be configured with complementary systems such as vacuum pumps and high/low-temperature equipment. Glass Reactors are widely used in fields such as petroleum, chemical, rubber, pesticides, dyes, biopharmaceuticals, and food, meeting various
experimental and production requirements

Features

  • High borosilicate glass 3.3

  • Low expansion rate, high temperature resistance, corrosion resistance

  • Spiral condenser

  • Large cooling area, good condensation effect

  • Frequency speed control

  • Stirring speed is adjustable

  • Flange reactor lid

  • Good sealing, easy to assembly

  • Bottom discharge valve

  • Complete discharge, no fluid accumulation, no leakage, no dead space

  • High vacuum ball connection

  • Good air tightness, excellent vacuum

  • Stir seal

  • PTFE stirrer shaft is resistant to acid, alkali and organic solution corrosion

  • Convenient operation

  • Multifunctional large openings, easy to feed and clean; distillation and reflux can be carried out at the same reactor

未标题-1_画板 1 副本.png

3.3

Borosilicate glass


SUS304

SS304 framework

未标题-1_画板 1 副本 6.png

Glass Tank

Graduated double layer glass tank can be customized


0.1Pa

The lowest vacuum


PLC

Automatic digital control

Typical Applications


Biopharmaceuticals


New materials


Chemicals

display-fresh-ripe-organic-broccoli-salad-with-greens-vegetables-cotton-bag-weekend-farmer

Food


Agriculture


Aerospace


JGR-0.5

  • Reactor Volume (L)：0.5

  • Jacket Volume（L）：0.4

  • Condenser area (㎡)：0.05

  • Dropping Funnel volume (L)：0.25

  • Receiving Flask Volume（L):  0.25

  • Working temperature range (℃): -80~200


JGR-1

  • Reactor Volume (L)：1

  • Jacket Volume（L）：0.6

  • Condenser area (㎡)：0.1

  • Dropping Funnel volume (L)：0.25

  • Receiving Flask Volume（L):  0.25

  • Working temperature range (℃): -80~200


JGR-2

  • Reactor Volume (L)：2

  • Jacket Volume（L）：1.5

  • Condenser area (㎡)：0.1

  • Dropping Funnel volume (L)：0.25

  • Receiving Flask Volume（L):  0.25

  • Working temperature range (℃): -80~200


JGR-3

  • Reactor Volume (L)：3

  • Jacket Volume（L）：2

  • Condenser area (㎡)：0.1

  • Dropping Funnel volume (L)：0.25

  • Receiving Flask Volume（L):  0.25

  • Working temperature range (℃): -80~200


JGR-5

  • Reactor Volume (L)：5

  • Jacket Volume（L）：3

  • Condenser area (㎡)：0.2

  • Dropping Funnel volume (L)：0.5

  • Receiving Flask Volume（L):  0.25

  • Working temperature range (℃): -80~200


JGR-10

  • Reactor Volume (L)：10

  • Jacket Volume（L）：5

  • Condenser area (㎡)：0.2

  • Dropping Funnel volume (L)：1

  • Receiving Flask Volume（L):  0.5

  • Working temperature range (℃): -80~200

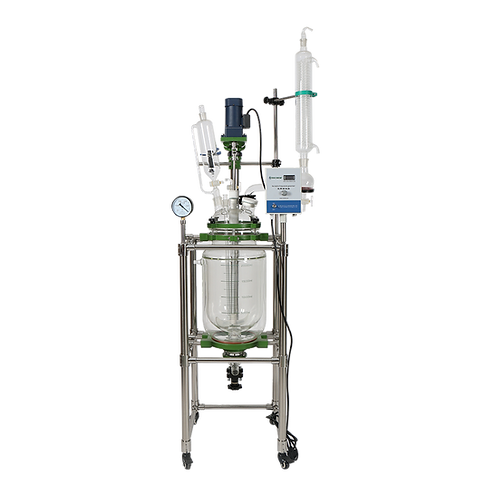

JGR-20

  • Reactor Volume (L)：20

  • Jacket Volume（L）：6

  • Condenser area (㎡)：0.2

  • Dropping Funnel volume (L)：1

  • Receiving Flask Volume（L):  0.5

  • Working temperature range (℃): -80~200


JGR-30

  • Reactor Volume (L)：30

  • Jacket Volume（L）：10

  • Condenser area (㎡)：0.3

  • Dropping Funnel volume (L)：1

  • Receiving Flask Volume（L):  0.5

  • Working temperature range (℃): -80~200


JGR-50

  • Reactor Volume (L)：50

  • Jacket Volume（L）：16

  • Condenser area (㎡)：0.3

  • Dropping Funnel volume (L)：2

  • Receiving Flask Volume（L):  0.5

  • Working temperature range (℃): -80~200


JGR-100

  • Reactor Volume (L)：100

  • Jacket Volume（L）：30

  • Condenser area (㎡)：0.4

  • Dropping Funnel volume (L)：2

  • Receiving Flask Volume（L):  1

  • Working temperature range (℃): -80~200


JGR-200

  • Reactor Volume (L)：200

  • Jacket Volume（L）：60

  • Condenser area (㎡)：0.6

  • Dropping Funnel volume (L)：2

  • Receiving Flask Volume（L):  1

  • Working temperature range (℃): -80~200

Model
JGR-0.5
JGR-1
JGR-2
JGR-3
JGR-5
JGR-10
JGR-20
JGR-30
JGR-50
JGR-100
JGR-200
Agitator blade
Stainless steel material with PTFE outer layer, paddle agitator
Stainless steel material with PTFE outer layer, paddle agitator
Stainless steel material with PTFE outer layer, paddle agitator
Stainless steel material with PTFE outer layer, paddle agitator
Stainless steel material with PTFE outer layer, paddle agitator
Stainless steel material with PTFE outer layer, paddle agitator
Stainless steel material with PTFE outer layer, paddle agitator
Stainless steel material with PTFE outer layer, paddle agitator
Stainless steel material with PTFE outer layer, paddle agitator
Stainless steel material with PTFE outer layer, paddle agitator
Stainless steel material with PTFE outer layer, paddle agitator
Condenser area (㎡)
0.05
0.05
0.05
0.05
0.1
0.2
0.2
0.3
0.3
0.4
0.6
Dimensions(mm)
380*380*1200
380*390*1200
380* 390*1200
360* 420*1200
490* 450*1450
780* 610*2050
800* 620*2150
800* 630*2200
830* 650*2300
950* 780*2800
1060* 1060*3050
Dropping Funnel volume (L)
0.25
0.25
0.25
0.25
0.25
1
1
1
2
2
2
Frame material
SUS304
SUS304
SUS304
SUS304
SUS304
SUS304
SUS304
SUS304
SUS304
SUS304
SUS304
Glass material
Borosilicate Glass 3.3
Borosilicate Glass 3.3
Borosilicate Glass 3.3
Borosilicate Glass 3.3
Borosilicate Glass 3.3
Borosilicate Glass 3.3
Borosilicate Glass 3.3
Borosilicate Glass 3.3
Borosilicate Glass 3.3
Borosilicate Glass 3.3
Borosilicate Glass 3.3
Jacket Volume（L）
0.4
0.6
1.5
2
3
5
6
10
13
30
60
Jacketed pressure (Mpa)
≤±0.03
≤±0.03
≤±0.03
≤±0.03
≤±0.03
≤±0.03
≤±0.03
≤±0.03
≤±0.03
≤±0.03
≤±0.03
Motor power(W)
90
90
90
90
90
120
120
120
120
200
370
Operating environment temperature(℃)
5~35
5~35
5~35
5~35
5~35
5~35
5~35
5~35
5~35
5~35
5~35
Power supply
220V/50Hz,1P
220V/50Hz,1P
220V/50Hz,1P
220V/50Hz,1P
220V/50Hz,1P
220V/50Hz,1P
220V/50Hz,1P
220V/50Hz,1P
220V/50Hz,1P
220V/50Hz,1P
220V/50Hz,1P
Reactor Volume (L)
0.5
1
2
3
5
10
20
30
50
100
200
Reactor pressure (Mpa)
﹣0.1~0.0
﹣0.1~0.0
﹣0.1~0.0
﹣0.1~0.0
﹣0.1~0.0
﹣0.1~0.0
﹣0.1~0.0
﹣0.1~0.0
﹣0.1~0.0
﹣0.1~0.0
﹣0.1~0.0
Receiving Flask Volume（L）
0.25
0.25
0.25
0.25
0.25
0.5
0.5
0.5
0.5
1
1
Relative humidity of the environment(%)
≤65
≤65
≤65
≤65
≤65
≤65
≤65
≤65
≤65
≤65
≤65
Rotation speed range(rpm)
0~1000
0~1000
0~1000
0~1000
0~1000
0-450
0-450
0-450
0-450
0-450
0-450
Sealing parts material
Fluororubber
Fluororubber
Fluororubber
Fluororubber
Fluororubber
Fluororubber
Fluororubber
Fluororubber
Fluororubber
Fluororubber
Fluororubber
Specification of cold and hot medium interface of the jacket(mm)
Φ12
Φ12
Φ12
Φ12
Φ18
DN25
DN25
DN25
DN25
DN25
DN25
Speed control mode
Stepless speed regulation
Stepless speed regulation
Stepless speed regulation
Stepless speed regulation
Stepless speed regulation
Frequency conversion speed regulation
Frequency conversion speed regulation
Frequency conversion speed regulation
Frequency conversion speed regulation
Frequency conversion speed regulation
Frequency conversion speed regulation
Stirrer sealing type
Skeleton oil seal
Skeleton oil seal
Skeleton oil seal
Skeleton oil seal
Skeleton oil seal
Skeleton oil seal
Skeleton oil seal
Skeleton oil seal
Skeleton oil seal
Skeleton oil seal
Skeleton oil seal
Temperature sudden change limit(℃)
≤80
≤80
≤80
≤80
≤80
≤80
≤80
≤80
≤80
≤80
≤80
Working temperature range (℃)
﹣80~200
﹣80~200
﹣80~200
﹣80~200
﹣80~200
﹣80~200
﹣80~200
﹣80~200
﹣80~200
﹣80~200
﹣80~200
